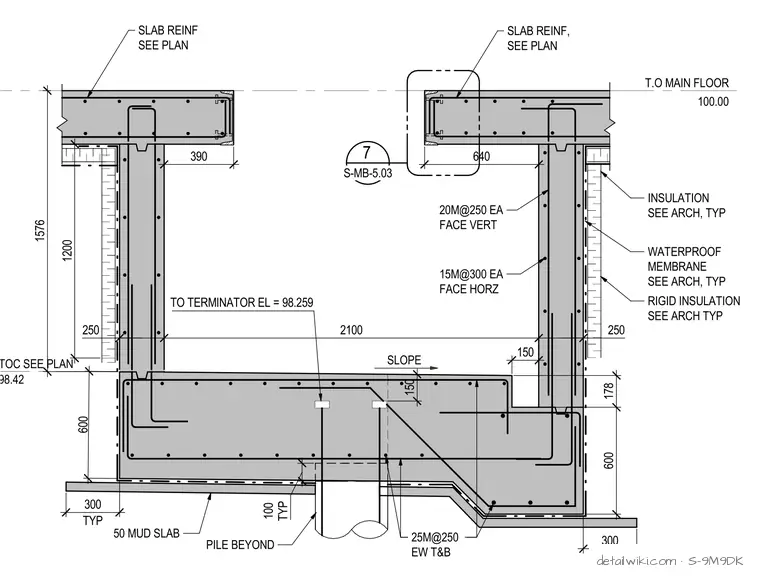

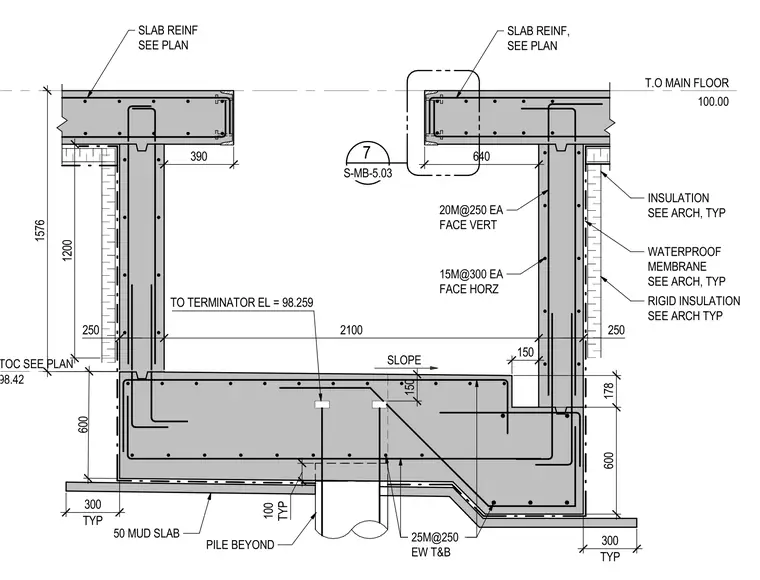

A reinforced concrete foundation wall and slab assembly bears on a concrete pile. The foundation wall features 20M vertical reinforcing bars spaced at 250 millimeters on each face and 15M horizontal reinforcing bars spaced at 300 millimeters on each face, with slab reinforcement sized per plan. The foundation footing includes 25M reinforcing bars each way top and bottom, supported by a 50 millimeter mud slab below. Rigid insulation, a waterproof membrane, and a terminator at elevation 98.259 are applied to the exterior face per architectural specifications. Vertical and horizontal dimensions establish clearances and thicknesses including a 2100 millimeter clear span, 250 millimeter wall thickness, and 600 millimeter footing depth.
