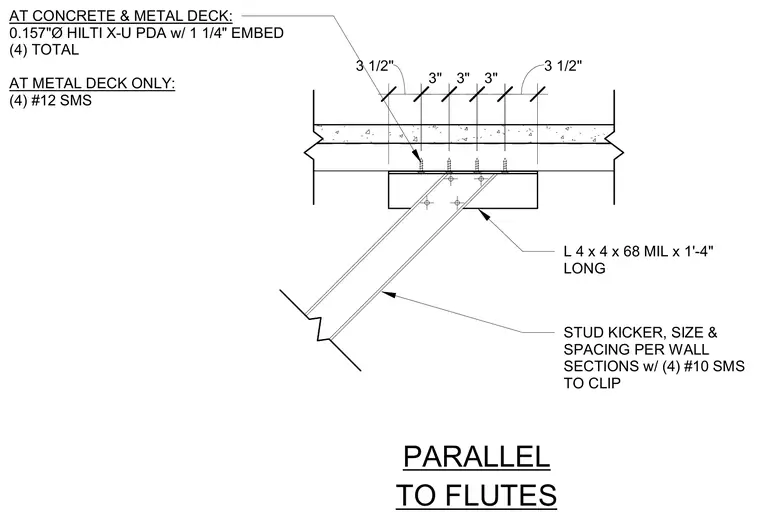

A 4x4-inch 68-mil angle measuring 1'-4" long acts as a clip to anchor a stud kicker parallel to the metal deck flutes. At concrete over metal deck, the clip is fastened with four 0.157-inch diameter Hilti X-U powder-actuated drive anchors with 1-1/4 inch embedment. At metal deck only conditions, four #12 self-metal screws are installed parallel to the flutes at 3-inch and 3-1/2 inch spacings. The stud kicker, sized per wall sections, connects to the clip using four #10 self-metal screws.
AT CONCRETE & METAL DECK: 0.157"Ø HILTI X-U PDA w/ 1 1/4" EMBED (4) TOTAL AT METAL DECK ONLY: (4) #12 SMS PARALLEL TO FLUTES 3 1/2" 3" 3" 3" 3 1/2" L 4 x 4 x 68 MIL x 1'-4" LONG STUD KICKER, SIZE & SPACING PER WALL SECTIONS w/ (4) #10 SMS TO CLIP
