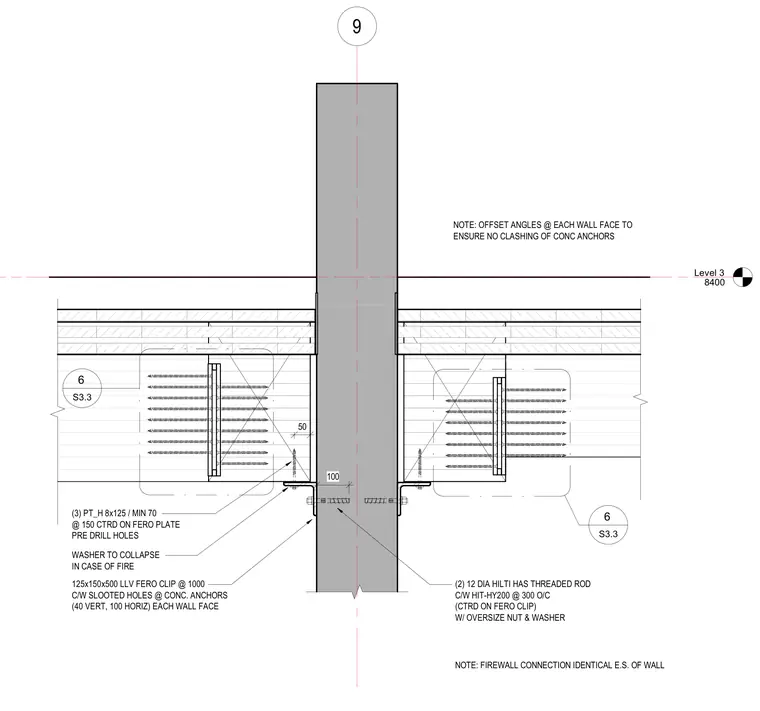

A reinforced concrete firewall connects to adjacent framing using 125x150x500 millimeter Fero clips spaced at 1,000 millimeters on center with slotted holes on each wall face. Two 12-diameter Hilti HAS threaded rods with HIT-HY200 adhesive anchor into the concrete at 300 millimeters on center, complete with oversized nuts and washers centered on the Fero clip. Three PT_H 8x125 with minimum 70 fasteners are placed at 150 millimeters on center, centered on the Fero plate with pre-drilled holes and washers designed to collapse in case of fire. Offset angles are installed at each wall face to prevent clashing of concrete anchors.
Level 3 8400 9 6 S3.3 6 S3.3 NOTE: OFFSET ANGLES @ EACH WALL FACE TO ENSURE NO CLASHING OF CONC ANCHORS (3) PT_H 8x125 / MIN 70 @ 150 CTRD ON FERO PLATE PRE DRILL HOLES 50 WASHER TO COLLAPSE IN CASE OF FIRE 125x150x500 LLV FERO CLIP @ 1000 C/W SLOOTED HOLES @ CONC. ANCHORS (40 VERT, 100 HORIZ) EACH WALL FACE (2) 12 DIA HILTI HAS THREADED ROD C/W HIT-HY200 @ 300 O/C (CTRD ON FERO CLIP) W/ OVERSIZE NUT & WASHER 100 NOTE: FIREWALL CONNECTION IDENTICAL E.S. OF WALL
