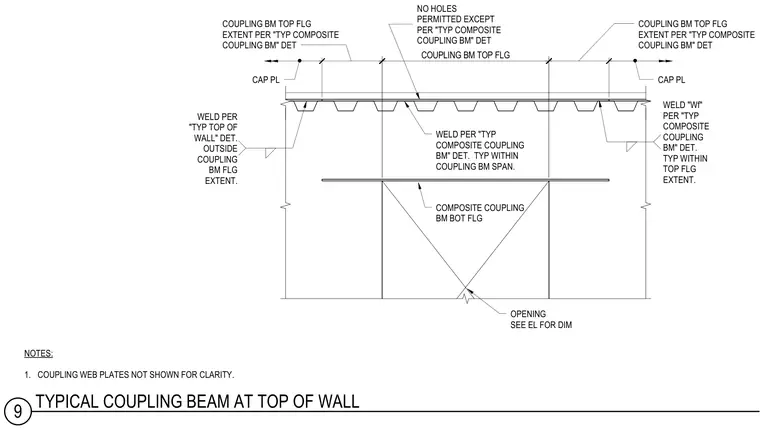

A composite coupling beam frames at the top of a reinforced concrete wall with web plates omitted for clarity. The coupling beam top flange extends per standard composite coupling beam details and features a cap plate welded at the ends. Specific fillet or groove welds designated as Wf are applied within the coupling beam span and top flange extent per referenced typical details. Outside the flange extent, welding conforms to standard top of wall connection details. Openings within the assembly are restricted unless specifically detailed, with dimensions verified from the elevations.
NOTES: 1. COUPLING WEB PLATES NOT SHOWN FOR CLARITY. COUPLING BM TOP FLG 18" 18" COUPLING BM TOP FLG EXTENT PER "TYP COMPOSITE COUPLING BM" DET COUPLING BM TOP FLG EXTENT PER "TYP COMPOSITE COUPLING BM" DET CAP PL CAP PL WELD PER "TYP COMPOSITE COUPLING BM" DET. TYP WITHIN COUPLING BM SPAN. WELD "Wf" PER "TYP COMPOSITE COUPLING BM" DET. TYP WITHIN TOP FLG EXTENT. WELD PER "TYP TOP OF WALL" DET. OUTSIDE COUPLING BM FLG EXTENT. NO HOLES PERMITTED EXCEPT PER "TYP COMPOSITE COUPLING BM" DET COMPOSITE COUPLING BM BOT FLG OPENING SEE EL FOR DIM 9 TYPICAL COUPLING BEAM AT TOP OF WALL
