Structural · S-9KP4C

Beam to Column Web Connection Plate Detail

Materials

Steel Metal (misc.)

Elements

Columns Beams Bracing Connections / Plates

Connections

Braced Frame Connection Gusset Plate Bracing Connection Welded Connection Bolted Connection

About this detail

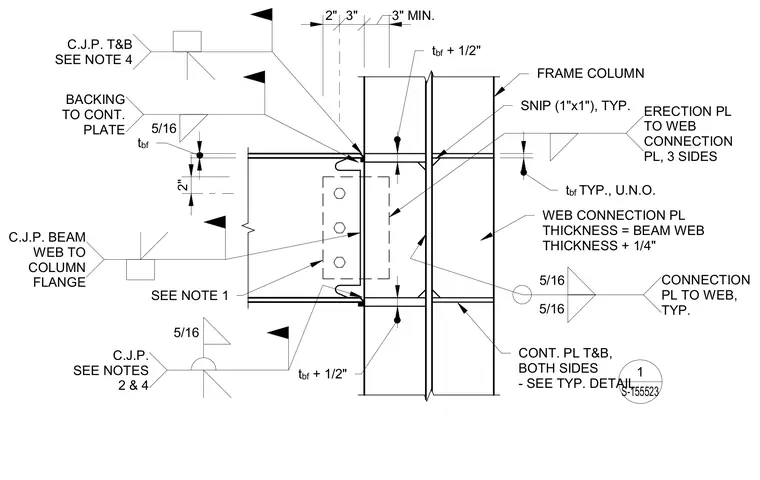

A structural steel beam frames into a column flange utilizing a web connection plate and continuous top and bottom plates. The web connection plate thickness equals the beam web thickness plus one-quarter inch, featuring a one-inch by one-inch typical snip. An erection plate connects to the web connection plate along three sides. Complete joint penetration welds are specified at the top and bottom of the beam flanges to the column flange, with five-sixteenths inch fillet welds elsewhere as indicated. Continuous plates are detailed at the top and bottom on both sides, incorporating backing bars and field weld symbols.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
