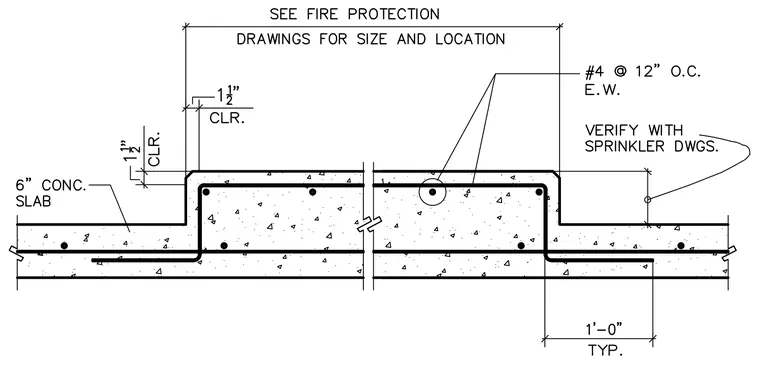

A six-inch concrete slab features a localized depression with one-and-a-half-inch clearances and a one-foot typical lap length for bottom reinforcing bars. The assembly is reinforced with number four rebar at twelve inches on center each way throughout the top and bottom mats. Fire protection and sprinkler drawing coordination are required for sizing and location.
