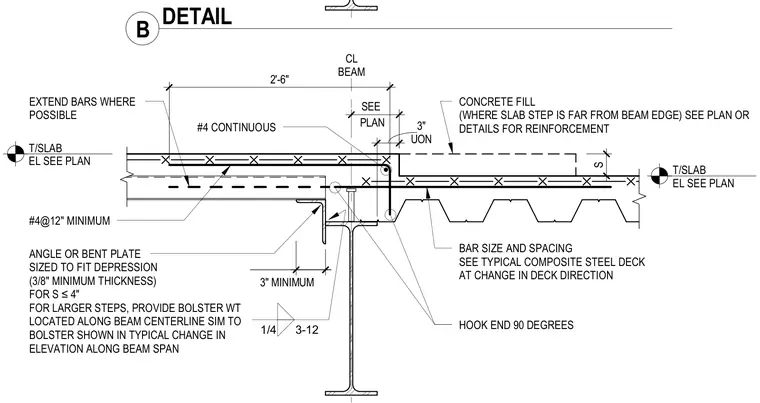

A slab step transition occurs over a steel beam supporting composite metal deck. An angle or bent plate with a three-eighths-inch minimum thickness is provided to fit depressions for steps of four inches or less, while larger steps require a wide-flange bolster located along the beam centerline. Continuous number four reinforcing bars spaced at twelve inches minimum are placed with ninety-degree hooked ends. Concrete fill is applied where the slab step is far from the beam edge, detailed per structural plans. A one-quarter-inch fillet weld secures the connection components along the beam span.
ANGLE OR BENT PLATE SIZED TO FIT DEPRESSION (3/8" MINIMUM THICKNESS) FOR S ≤4" FOR LARGER STEPS, PROVIDE BOLSTER WT LOCATED ALONG BEAM CENTERLINE SIM TO BOLSTER SHOWN IN TYPICAL CHANGE IN ELEVATION ALONG BEAM SPAN #4@12" MINIMUM UON 3" S PLAN SEE BAR SIZE AND SPACING SEE TYPICAL COMPOSITE STEEL DECK AT CHANGE IN DECK DIRECTION HOOK END 90 DEGREES 3" MINIMUM CL BEAM CONCRETE FILL (WHERE SLAB STEP IS FAR FROM BEAM EDGE) SEE PLAN OR DETAILS FOR REINFORCEMENT EXTEND BARS WHERE POSSIBLE T/SLAB EL SEE PLAN T/SLAB EL SEE PLAN 1/4 3-12 2'-6" #4 CONTINUOUS B DETAIL
