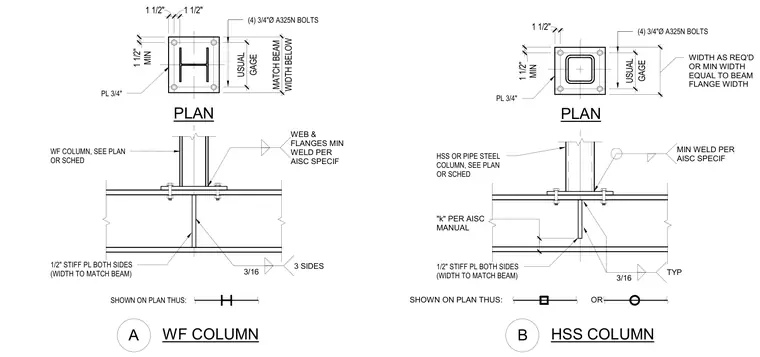

Steel column base connections are supported by wide flange beams, featuring both wide flange column and hollow structural section or pipe column configurations. A three-quarter-inch thick base plate is secured with four three-quarter-inch diameter A325N bolts in a plan layout with one-and-a-half-inch minimum edge distances. One-half-inch thick stiffener plates are welded to both sides of the supporting beam web with three-sixteenth-inch fillet welds on three sides. The column connects to the base plate using minimum welds per AISC specifications along the web and flanges. A distance "k" per the AISC manual is maintained for the stiffener plate placement relative to the beam flange.
SHOWN ON PLAN THUS: 1/2" STIFF PL BOTH SIDES (WIDTH TO MATCH BEAM) WF COLUMN, SEE PLAN OR SCHED PL 3/4" SHOWN ON PLAN THUS: OR HSS OR PIPE STEEL COLUMN, SEE PLAN OR SCHED 1/2" STIFF PL BOTH SIDES (WIDTH TO MATCH BEAM) "k" PER AISC MANUAL (4) 3/4"Ø A325N BOLTS HSS COLUMN A WF COLUMN B PLAN PL 3/4" (4) 3/4"Ø A325N BOLTS PLAN 3/16 3 SIDES WEB & FLANGES MIN WELD PER AISC SPECIF MIN 1 1/2" 1 1/2" GAGE USUAL MIN 1 1/2" 1 1/2" 1 1/2" GAGE USUAL WIDTH BELOW MATCH BEAM MIN WELD PER AISC SPECIF 3/16 TYP WIDTH AS REQ'D OR MIN WIDTH EQUAL TO BEAM FLANGE WIDTH
