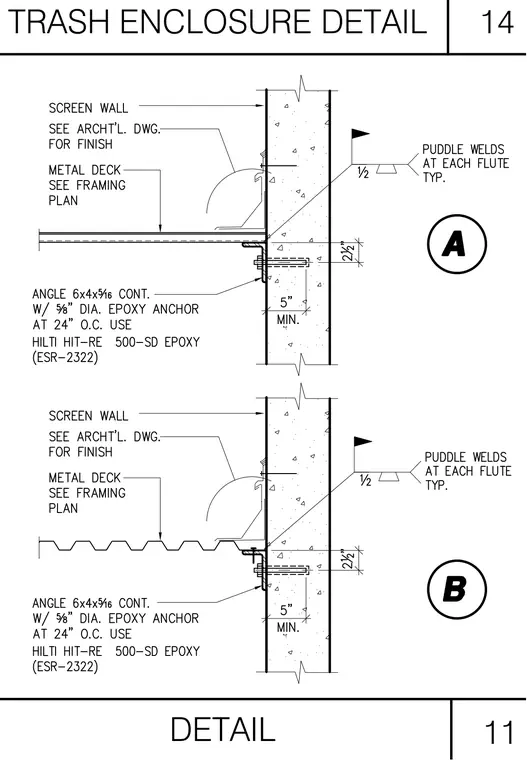

A continuous 6x4x5/16 structural steel angle mounts to a concrete wall using five-eighths inch diameter epoxy anchors spaced at twenty-four inches on center with Hilti HIT-RE 500-SD epoxy. The metal deck bears on the angle and attaches with a one-half inch puddle weld at each flute. A screen wall extends upward with finishes specified on architectural drawings. Two variations show the metal deck connection at different fluting alignments relative to the support angle.
