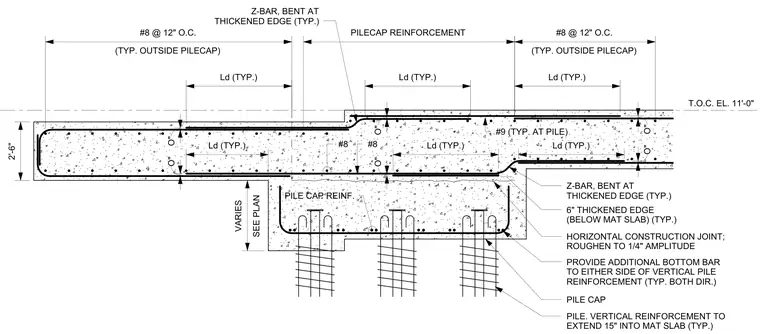

An exterior pile cap transitions into a mat slab with a six-inch thickened edge below the slab. The assembly features pile cap reinforcement tied to vertical pile reinforcement that extends fifteen inches into the mat slab. Additional bottom bars are provided on either side of the vertical pile reinforcement in both directions. Horizontal construction joints are specified with a roughened finish to a quarter-inch amplitude. Top and bottom reinforcement utilize number eight bars spaced at twelve inches on center outside the pile cap, with number nine bars typically at the piles and z-bars bent at the thickened edge.
T.O.C. EL. 11'-0" O" Ld (TYP.) O" O" O" O" O" Ld (TYP.) Ld (TYP.) Ld (TYP.) Ld (TYP.) Ld (TYP.) PILECAP REINFORCEMENT (TYP. OUTSIDE PILECAP) #8 @ 12" O.C. (TYP. OUTSIDE PILECAP) #8 @ 12" O.C. SEE PLAN VARIES 2'-6" #8 #8 PILE CAP REINF. #9 (TYP. AT PILE) 6" THICKENED EDGE (BELOW MAT SLAB) (TYP.) Z-BAR, BENT AT THICKENED EDGE (TYP.) PILE. VERTICAL REINFORCEMENT TO EXTEND 15" INTO MAT SLAB (TYP.) PROVIDE ADDITIONAL BOTTOM BAR TO EITHER SIDE OF VERTICAL PILE REINFORCEMENT (TYP. BOTH DIR.) PILE CAP HORIZONTAL CONSTRUCTION JOINT; ROUGHEN TO 1/4" AMPLITUDE Z-BAR, BENT AT THICKENED EDGE (TYP.)
