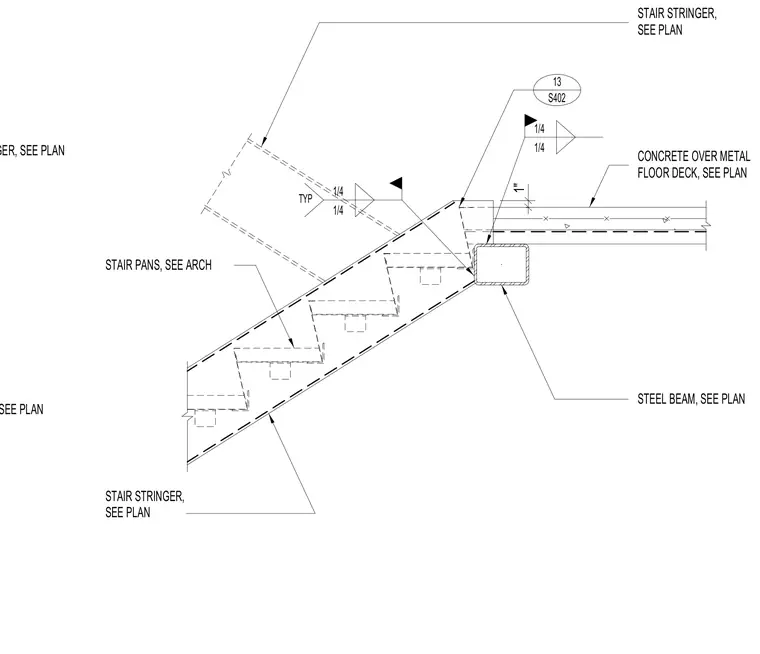

A structural steel stair stringer frames into a supporting steel beam at the floor slab edge. The stair pans and stringer sizes are sized per plan and welded to the structural framing with one-quarter-inch fillet welds. A concrete slab over metal floor deck meets the support beam with a one-inch vertical clearance. Additional stair stringer alignment and sizing are coordinated with architectural drawings.
STEEL BEAM, SEE PLAN STEEL STRINGER, SEE PLAN STEEL BEAM, SEE PLAN CONCRETE OVER METAL FLOOR DECK, SEE PLAN STAIR STRINGER, SEE PLAN STAIR PANS, SEE ARCH 1/4 TYP 1/4 STAIR STRINGER, SEE PLAN 1/4 1/4 13 S402 1"
