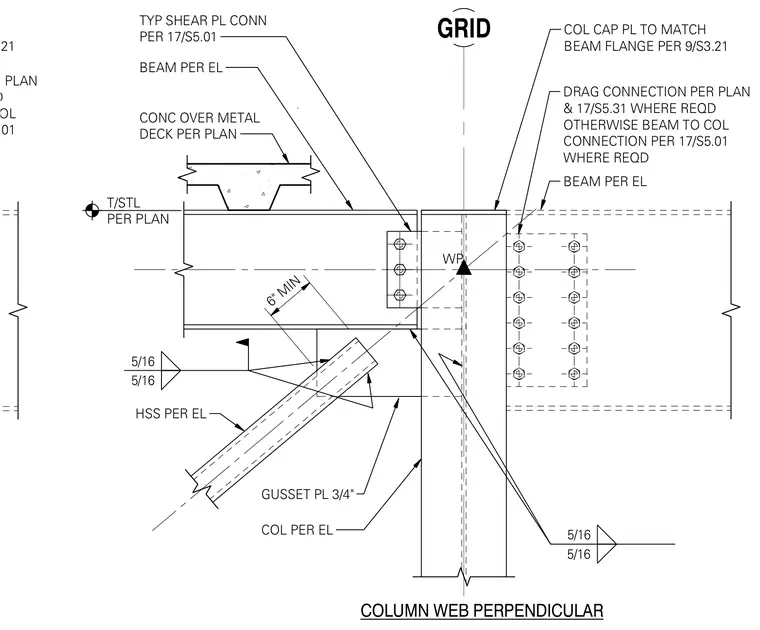

A hollow structural section brace connects to a column web using a three-quarter-inch thick gusset plate welded with five-sixteenth-inch fillet welds. A beam frames into the column with a typical shear plate connection while supporting a concrete floor slab over metal deck. A column cap plate matches the beam flange thickness above. Additional drag and beam-to-column connections are provided per plan.
DRAG CONNECTION PER PLAN & 17/S5.31 WHERE REQD OTHERWISE BEAM TO COL CONNECTION PER 17/S5.01 COLUMN WEB PERPENDICULAR GRID T/STL PER PLAN WP DRAG CONNECTION PER PLAN & 17/S5.31 WHERE REQD OTHERWISE BEAM TO COL CONNECTION PER 17/S5.01 WHERE REQD CONC OVER METAL DECK PER PLAN BEAM PER EL 6" MIN GUSSET PL 3/4" COL PER EL TYP SHEAR PL CONN PER 17/S5.01 BEAM PER EL HSS PER EL 5/16 5/16 BEAM FLANGE PER 9/S3.21 5/16 5/16 COL CAP PL TO MATCH BEAM FLANGE PER 9/S3.21
