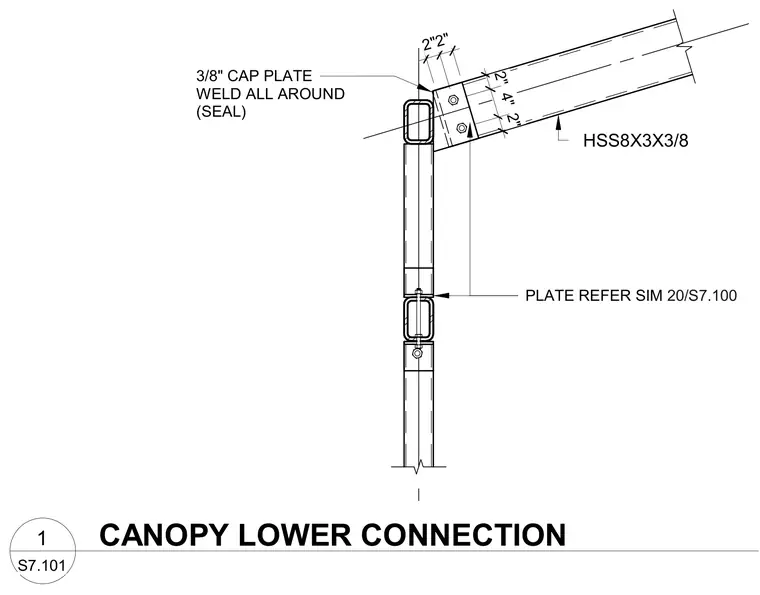

An HSS8x3x3/8 structural steel member connects to a vertical hollow structural section support. A 3/8-inch cap plate is welded all around with a seal weld at the connection point. Additional connection plates are referenced per sheet S7.100.
PLATE REFER SIM 20/S7.100 3/8" CAP PLATE WELD ALL AROUND (SEAL) 2" 2" HSS8X3X3/8 2" 4" 2" S7.101 1 CANOPY LOWER CONNECTION
