An incoming structural brace connects to a column web using the AR configuration with three-quarter-inch diameter anchor rods and washer plates complying with AISC Table 14-2. Flange extension plates match the column flange thickness and grade and extend a minimum of two feet from the base plate. A one-inch diameter maximum grout hole is provided at the contractor's option.

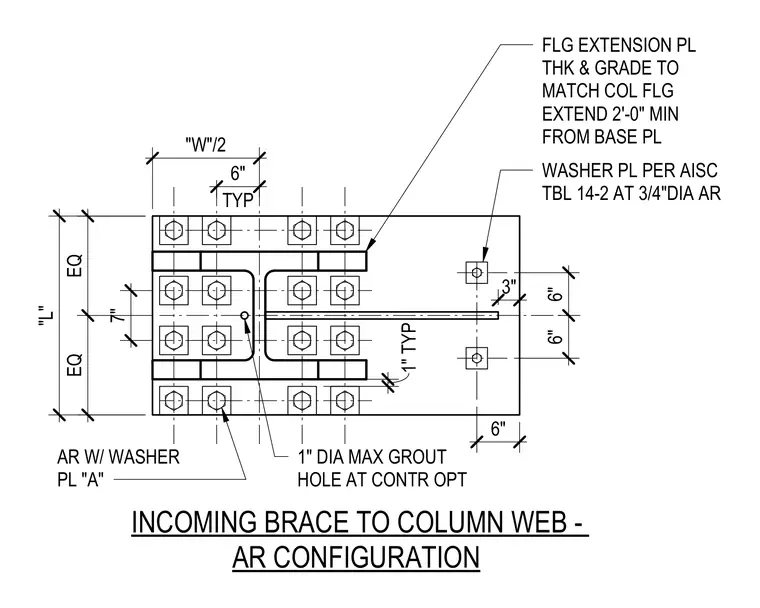

6" "L" EQ EQ AR W/ WASHER PL "A" WASHER PL PER AISC TBL 14-2 AT 3/4"DIA AR INCOMING BRACE TO COLUMN WEB - AR CONFIGURATION 1" DIA MAX GROUT HOLE AT CONTR OPT 6" 6" 3" "W"/2 TYP 6" 1" TYP 7" FLG EXTENSION PL THK & GRADE TO MATCH COL FLG EXTEND 2'-0" MIN FROM BASE PL
