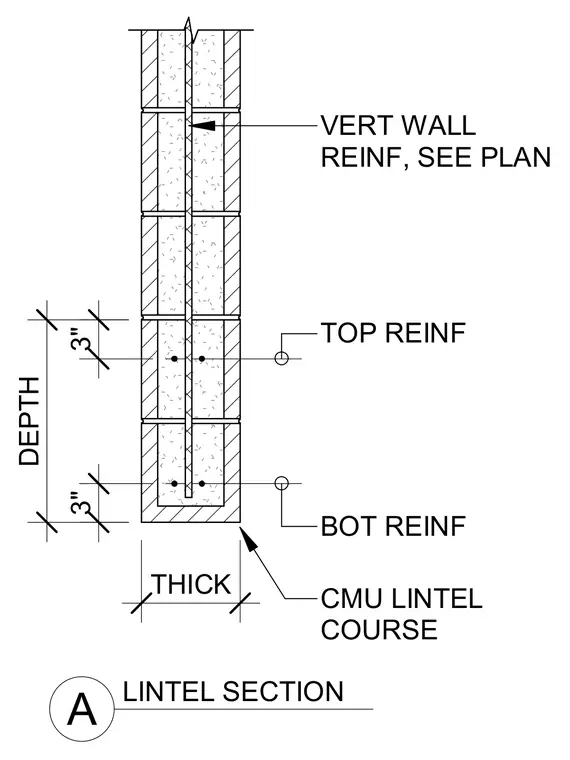

This structural detail shows a reinforced concrete masonry unit lintel course with specified depth and thickness dimensions. Top and bottom reinforcement bars are positioned within the grouted cell, with vertical wall reinforcement continuing through the assembly as sized per plan.
THICK DEPTH 3" 3" VERT WALL REINF, SEE PLAN TOP REINF BOT REINF CMU LINTEL COURSE A LINTEL SECTION
