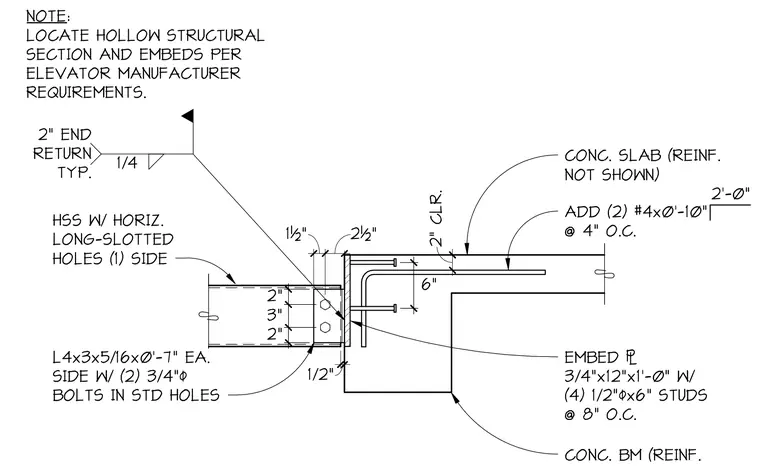

A hollow structural section with horizontal long-slotted holes on one side connects to an embed plate cast into a concrete beam and slab. The connection uses L4x3x5/16 by zero-feet-seven-inches angles on each side fastened with two three-quarter-inch bolts in standard holes. The embed plate measures three-quarters by twelve by twelve inches and includes four half-inch diameter by six-inch studs at eight inches on center. Additional reinforcement consists of two number four bars at zero-feet-ten-inches long at four inches on center with two inches of clearance. A one-quarter-inch fillet weld with typical two-inch end returns attaches the angle assembly. The hollow structural section and embeds are located per elevator manufacturer requirements.
6" 1½" 2½" 1/2" 2" 3" 2" 1/4 2" END RETURN TYP. ADD (2) #4x0'-10" @ 4" O.C. 2" CLR. EMBED + 3/4"x12"x1'-0" W/ (4) 1/2" x6" STUDS @ 8" O.C. L4x3x5/16x0'-7" EA. SIDE W/ (2) 3/4" BOLTS IN STD HOLES HSS W/ HORIZ. LONG-SLOTTED HOLES (1) SIDE CONC. BM (REINF. NOTE: LOCATE HOLLOW STRUCTURAL SECTION AND EMBEDS PER ELEVATOR MANUFACTURER REQUIREMENTS. 2'-0" CONC. SLAB (REINF. NOT SHOWN)
