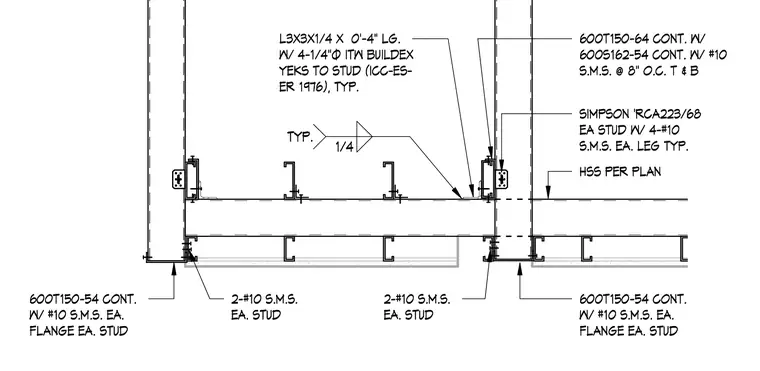

Cold-formed steel track members including continuous 600T150-64 and 600S162-54 sections connect to a hollow structural section column specified per plan. The assembly is secured using L3x3x1/4 by four-inch long angles fastened with four quarter-inch diameter ITW Buildex Tek screws per stud. Simpson RCA223/68 connectors attach to each stud with four number ten sheet metal screws per leg. Additional connections utilize two number ten sheet metal screws at each stud flange and top and bottom tracks at eight inches on center.
600T150-64 CONT. W/ 600S162-54 CONT. W/ #10 S.M.S. @ 8" O.C. T & B SIMPSON 'RCA223/68 EA STUD W/ 4-#10 S.M.S. EA. LEG TYP. HSS PER PLAN L3X3X1/4 X 0'-4" LG. W/ 4-1/4"Ø ITW BUILDEX YEKS TO STUD (ICC-ES- ER 1976), TYP. TYP. 1/4 600T150-54 CONT. W/ #10 S.M.S. EA. FLANGE EA. STUD 2-#10 S.M.S. EA. STUD 2-#10 S.M.S. EA. STUD 600T150-54 CONT. W/ #10 S.M.S. EA. FLANGE EA. STUD
