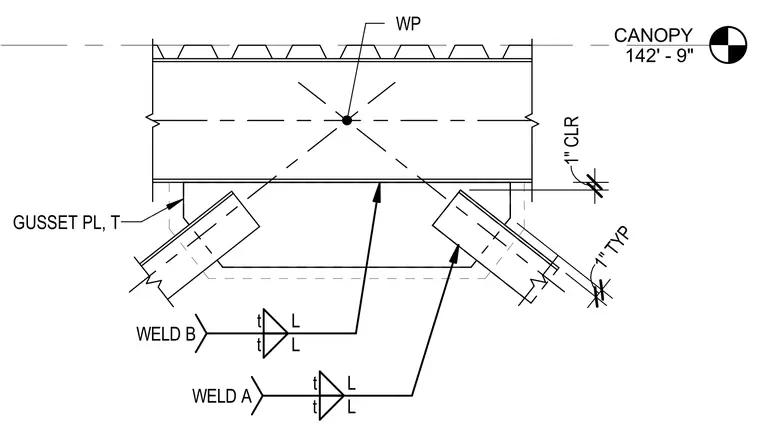

Diagonal structural members frame into a gusset plate connected to the underside of a canopy beam at a work point. Weld A secures the diagonal members to the gusset plate. Weld B secures the gusset plate assembly to the structural member above with a typical one-inch clearance.
