Exterior Strut at Grade Beam and Foundation

Elements

Beams Floors / Slabs Foundations / Footings Arches Expansion / Control Joints Site / Paving

About this detail

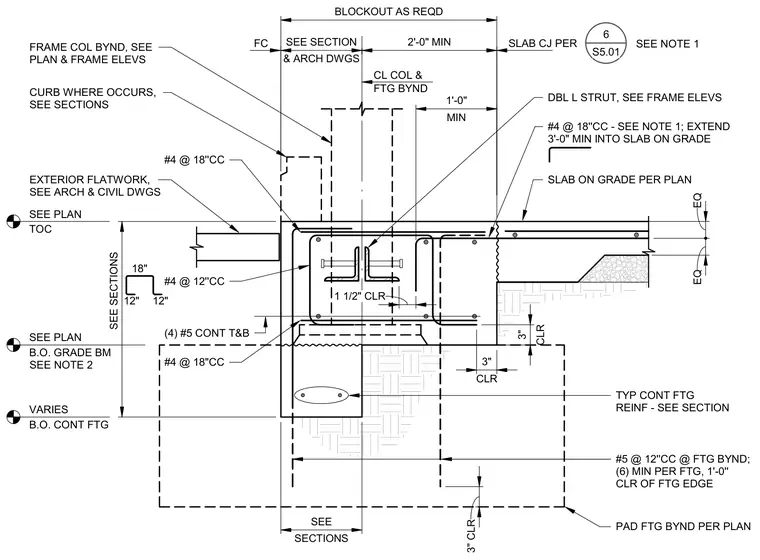

An exterior strut connection occurs at a grade beam and continuous footing supporting a slab on grade. A double-angle strut is embedded within the grade beam, extending at least three feet into the adjacent slab on grade with number five rebar spaced at twelve inches on center. The continuous footing features four number five continuous reinforcing bars at top and bottom, with number four stirrups at eighteen inches on center. A slab control joint is positioned beyond the blockout, aligned with detail six on sheet S5.01. Concrete cover is maintained at one and one-half inches for internal angles and three inches for exterior footings.
