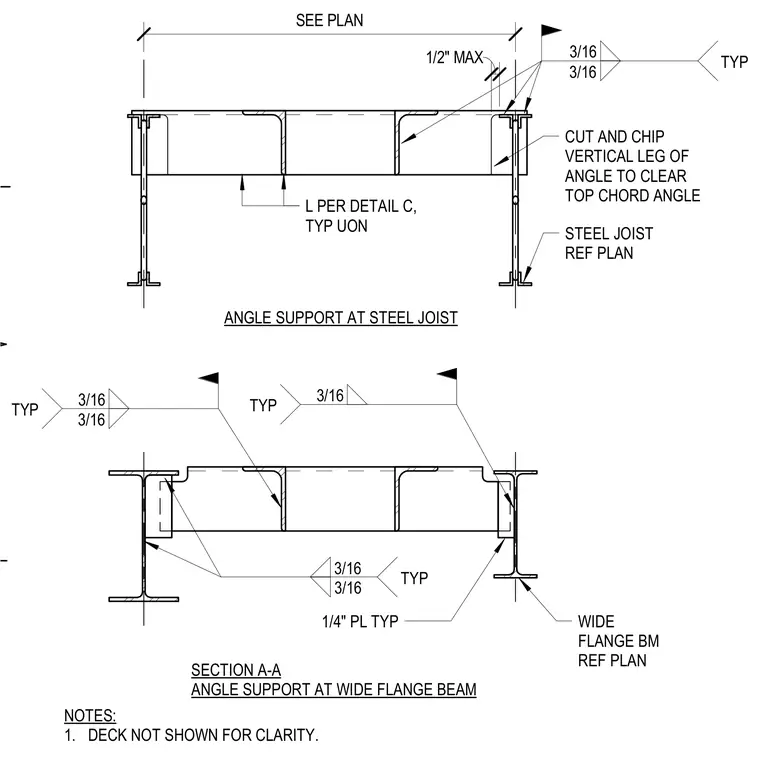

Angle supports connect to a steel joist and a wide flange beam. The structural assembly features steel angles sized per detail C, quarter-inch plates, and three-sixteenths inch fillet welds typically applied. The vertical leg of the angle is cut and chipped to clear the top chord angle with a half-inch maximum clearance. The metal deck is omitted for clarity.
3/16 3/16 TYP NOTES: 1. DECK NOT SHOWN FOR CLARITY. 3/16 3/16 TYP SECTION A-A ANGLE SUPPORT AT WIDE FLANGE BEAM ANGLE SUPPORT AT STEEL JOIST SEE PLAN WIDE FLANGE BM REF PLAN STEEL JOIST REF PLAN 3/16 3/16 TYP 3/16 TYP 1/4" PL TYP L PER DETAIL C, TYP UON CUT AND CHIP VERTICAL LEG OF ANGLE TO CLEAR TOP CHORD ANGLE 1/2" MAX
