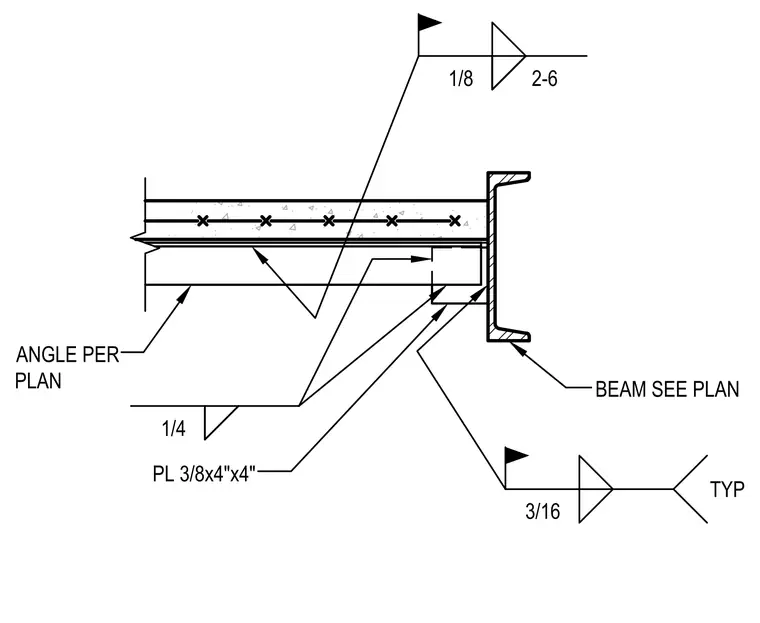

This connection features an angle, sized per plan, supporting a landing assembly. The angle is supported by a three-eighths inch by four inch by four inch plate, which is welded to the web of a beam sized per plan. The plate is attached to the beam with a three-sixteenths inch fillet weld, applied typically. The landing angle is secured to the supporting structure with a one-quarter inch fillet weld. An additional one-eighth inch fillet weld with a two-six inch intermittent spacing is specified for the landing assembly connection.
