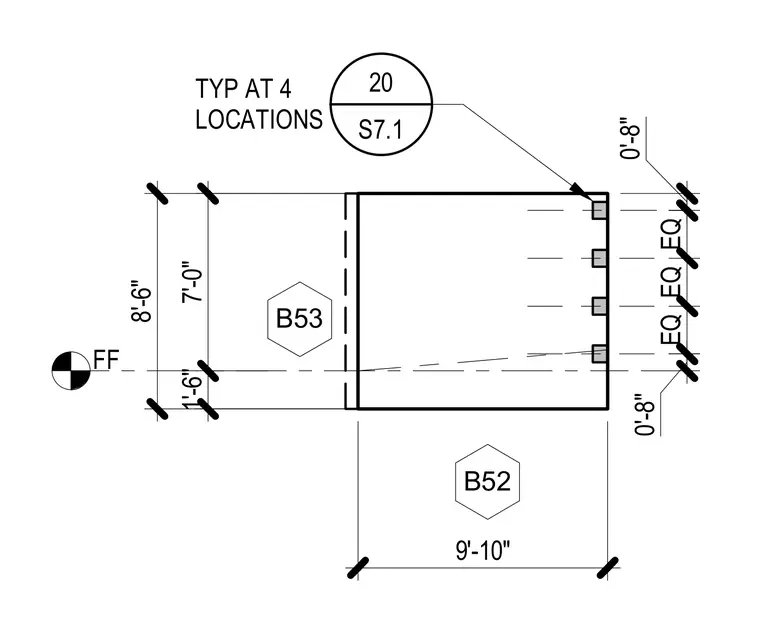

A structural plan layout showing beam locations B52 and B53 with a length of nine feet ten inches and a width of eight feet six inches. The layout includes four specific locations spaced with equal intervals and edge dimensions of zero feet eight inches.
B52 8'-6" 9'-10" B53 FF 20 S7.1 TYP AT 4 LOCATIONS 1'-6" 7'-0" 0'-8" 0'-8" EQ EQ EQ
