Align The Cfs Stud To

Materials

Elements

About this detail

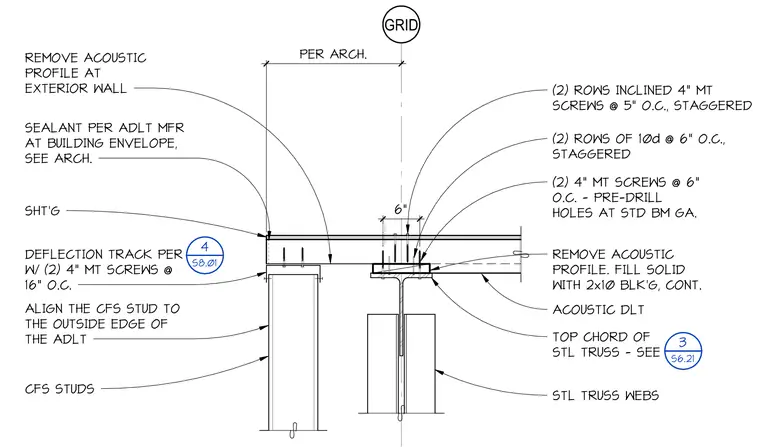

Cold-formed steel studs align with the outside edge of the acoustic deck, utilizing a deflection track fastened with two rows of four-inch metal screws at sixteen inches on center. The top chord of the steel truss bears below continuous two-by-ten wood blocking packed solidly into the acoustic deck profile, secured by two rows of inclined four-inch metal screws at five inches on center and two rows of ten-penny nails at six inches on center, staggered. Pre-drilled holes are required at standard beam gauges for fastener installation. Acoustic profile is removed at the exterior wall to accommodate building envelope sealant specified per manufacturer requirements.
