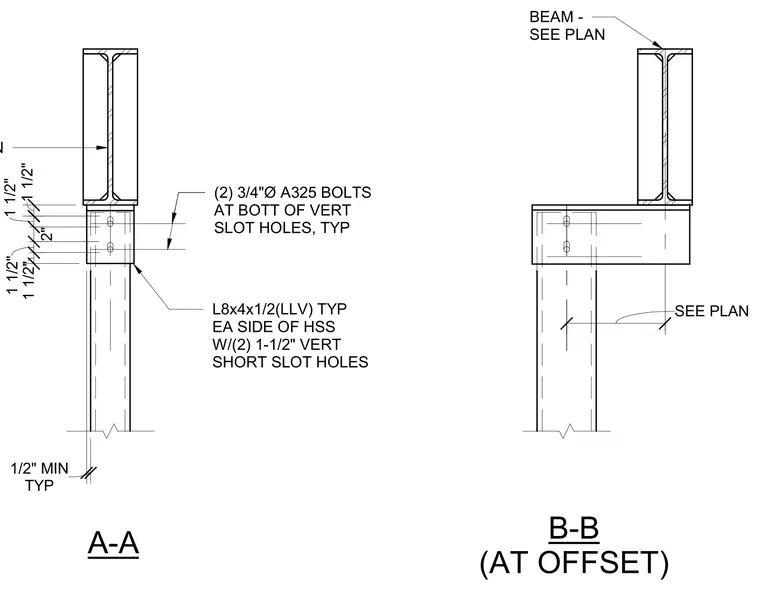

A continuous wide-flange beam bears onto a hollow structural section column with structural angles placed on each side of the HSS. The angles are sized as L8x4x1/2 with long legs vertical, featuring two 1-1/2-inch vertical short slot holes. Two 3/4-inch diameter A325 bolts are positioned at the bottom of the vertical slot holes typical. The beam size and offset conditions are sized per plan with a minimum 1/2-inch clearance.
L8x4x1/2(LLV) TYP EA SIDE OF HSS W/(2) 1-1/2" VERT SHORT SLOT HOLES (2) 3/4"Ø A325 BOLTS AT BOTT OF VERT SLOT HOLES, TYP BEAM - SEE PLAN A-A B-B (AT OFFSET) BEAM SEE PLAN SEE PLAN TYP 1/2" MIN 1 1/2" 1 1/2" 2" 1 1/2" 1 1/2"
