A vertical hollow structural section post connects to a one-half inch by six-inch by one-foot four-inch embed plate welded with two one-half inch diameter by three-and-a-half-inch welded studs. The embed plate rests on a concrete over metal deck assembly, with studs field-located in the low flutes of the metal deck spaced at one foot zero inches on center. A three-sixteenth-inch fillet weld secures the HSS vertical post to the embed plate on two sides.

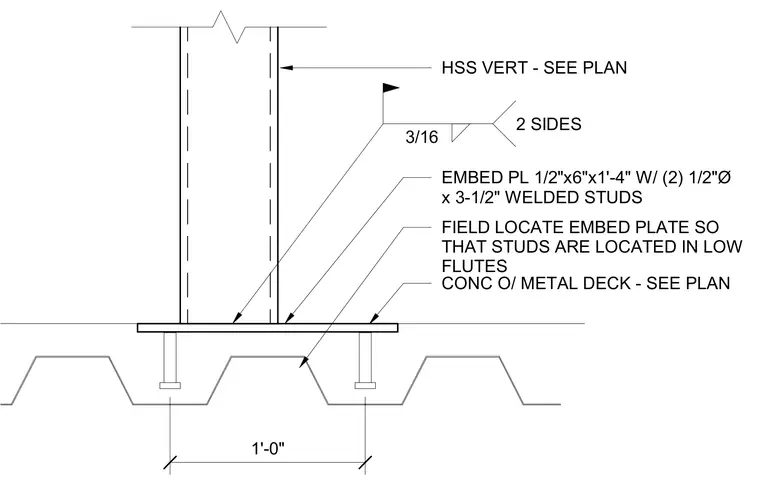

EMBED PL 1/2"x6"x1'-4" W/ (2) 1/2"Ø x 3-1/2" WELDED STUDS FIELD LOCATE EMBED PLATE SO THAT STUDS ARE LOCATED IN LOW FLUTES 3/16 2 SIDES HSS VERT - SEE PLAN CONC O/ METAL DECK - SEE PLAN 1'-0"
