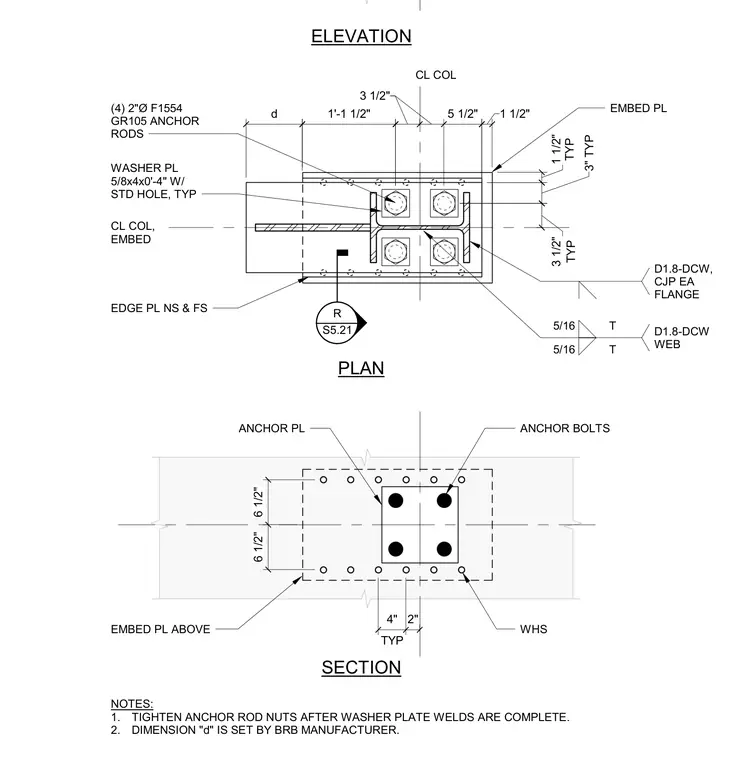

A buckling-restrained braced frame column base plate connection is secured by four two-inch-diameter ASTM F1554 Grade 105 anchor rods. Five-eighths by four by four-inch washer plates with standard holes are typically provided and welded, with anchor rod nuts tightened only after washer plate welds are complete. The column flanges and web are joined to the embed plate using complete joint penetration welds. Edge plates are specified on both the near side and far side, and dimension "d" is set by the buckling-restrained brace manufacturer.
ELEVATION PLAN 1 1/2" 3 1/2" 3 1/2" 5 1/2" (4) 2"Ø F1554 GR105 ANCHOR RODS NOTES: 1. TIGHTEN ANCHOR ROD NUTS AFTER WASHER PLATE WELDS ARE COMPLETE. 2. DIMENSION "d" IS SET BY BRB MANUFACTURER. R S5.21 ____ EDGE PL NS & FS CL COL CL COL, EMBED WASHER PL 5/8x4x0'-4" W/ STD HOLE, TYP EMBED PL D1.8-DCW, CJP EA FLANGE 5/16 T 5/16 T D1.8-DCW WEB d 3" TYP SECTION 1'-1 1/2" 6 1/2" 6 1/2" TYP 4" 2" ANCHOR PL ANCHOR BOLTS WHS EMBED PL ABOVE TYP 1 1/2" TYP 3 1/2"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
