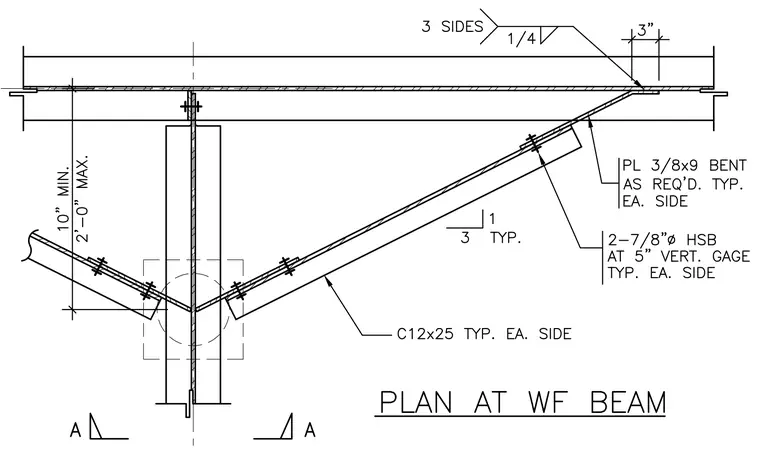

Channel sections denoted as C12x25 are framed at a 1 to 3 slope and attached to each side of a wide flange beam assembly using bent plates measuring 3/8 inch by 9 inches. Each connection utilizes two 7/8 inch diameter high-strength bolts spaced at a 5 inch vertical gauge typical on each side. A 1/4 inch fillet weld is applied on three sides to secure the bent plate assembly. Vertical dimensions indicate a clearance ranging from 10 inches minimum to 2 feet 0 inches maximum.
