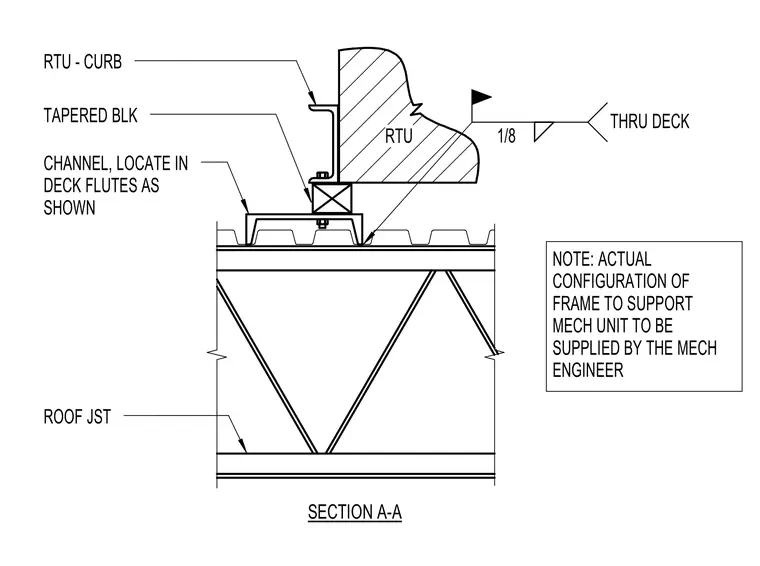

A rooftop unit curb bears on a tapered block and a steel channel located within the deck flutes above a structural roof joist. A one-eighth inch weld secures components through the steel deck. The actual configuration of the frame to support the mechanical unit is to be supplied by the mechanical engineer.
SECTION A-A ROOF JST RTU - CURB TAPERED BLK CHANNEL, LOCATE IN DECK FLUTES AS SHOWN RTU NOTE: ACTUAL CONFIGURATION OF FRAME TO SUPPORT MECH UNIT TO BE SUPPLIED BY THE MECH ENGINEER 1/8 THRU DECK
