Structural · S-9G72N

Steel Framing and Curtain Wall Interface at Window Head and Sill

Materials

Concrete Steel Timber / Wood Glass / Glazing Metal (misc.)

Elements

Beams Windows Curtain Walls Floors / Slabs Decks Arches Bracing

Connections

Bracing Connection

About this detail

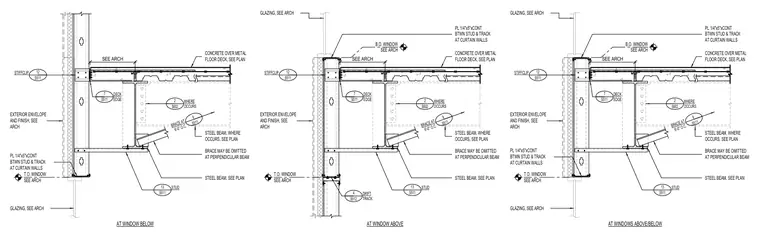

Structural steel framing and exterior stud backup interface at window heads and sils along the building perimeter. Concrete over metal floor deck bears on steel beams, with continuous plate blocking provided between studs and tracks at curtain walls. Stiffclips and drift tracks secure the cold-formed steel stud framing to the floor structure above and below. Bracing is provided at six feet on center where required, with provisions for braces to be omitted at perpendicular beams.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
