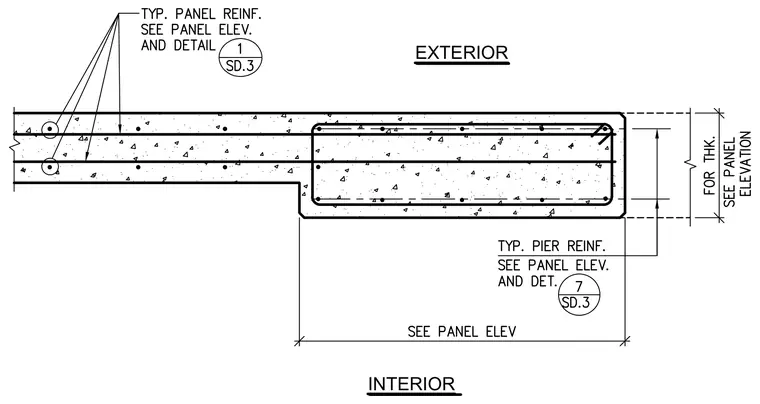

A precast concrete wall panel cross-section includes typical panel reinforcement and a thicker pier section at the edge. The main panel body contains typical panel reinforcement detailed per the panel elevation and detail 1 on sheet SD.3. The thickened exterior pier incorporates typical pier reinforcement referenced to panel elevation and detail 7 on sheet SD.3. Panel thickness and dimensions are coordinated with the corresponding panel elevations.
