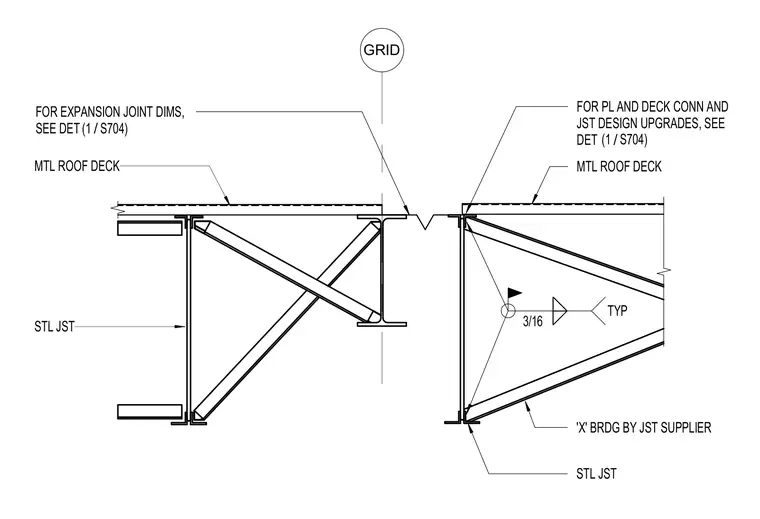

Steel joists span parallel to an expansion joint with cross bridging supplied by the joist manufacturer. A metal roof deck bears across the top chords of the joists on each side of the structural grid line. Three-sixteenths inch welds are specified typically for plate and deck connections as well as joist design upgrades. Expansion joint dimensions and specific plate details are coordinated with detail 1/S704.
STL JST 'X' BRDG BY JST SUPPLIER MTL ROOF DECK GRID MTL ROOF DECK STL JST 3/16 TYP FOR PL AND DECK CONN AND JST DESIGN UPGRADES, SEE DET / (1 S704) FOR EXPANSION JOINT DIMS, SEE DET / (1 S704)
