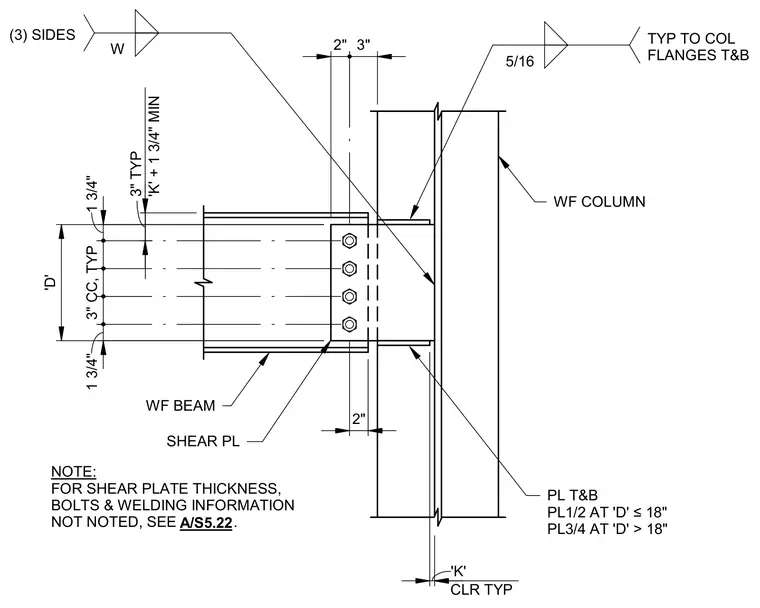

A wide-flange beam connects to a wide-flange column using top and bottom plates welded to the column flanges with five-sixteenth-inch fillet welds on three sides. A vertical shear plate bolts to the beam web with a typical three-inch center-to-center fastener spacing. Top and bottom plate thicknesses vary from one-half inch to three-quarters of an inch depending on whether dimension D is less than or equal to eighteen inches or greater than eighteen inches. A two-inch clearance and dimension K are maintained at the beam web and flange interface.
WF COLUMN WF BEAM PL T&B PL1/2 AT 'D' ≤18" PL3/4 AT 'D' > 18" 2" 2" 3" A/S5.22 NOTE: FOR SHEAR PLATE THICKNESS, BOLTS & WELDING INFORMATION NOT NOTED, SEE . SHEAR PL 'D' 1 3/4" 3" CC, TYP 1 3/4" W (3) SIDES 5/16 TYP TO COL FLANGES T&B CLR TYP 3" TYP 'K' + 1 3/4" MIN 'K'
