Deck Reinforcing at Small Openings

Materials

Elements

Beams Decks Reinforcing Roof / Floor Openings

About this detail

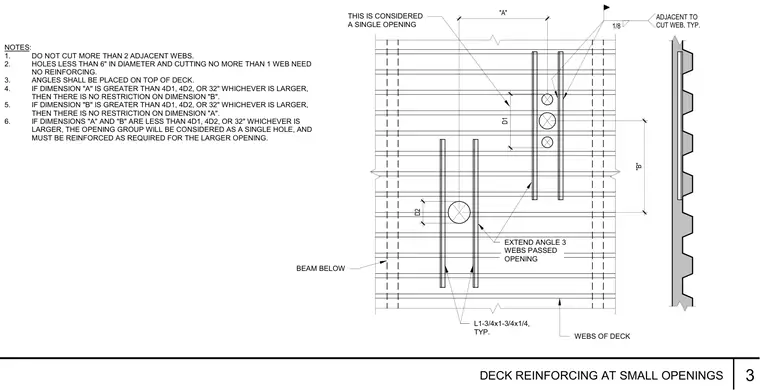

Steel angles of size L1-3/4x1-3/4x1/4 are placed on top of the metal deck and oriented parallel to the deck webs to reinforce small slab openings. The angles extend three webs past each side of the opening. Additional notes specify web-cutting limitations, hole diameter thresholds, and dimensional spacing rules for grouping multiple openings.
