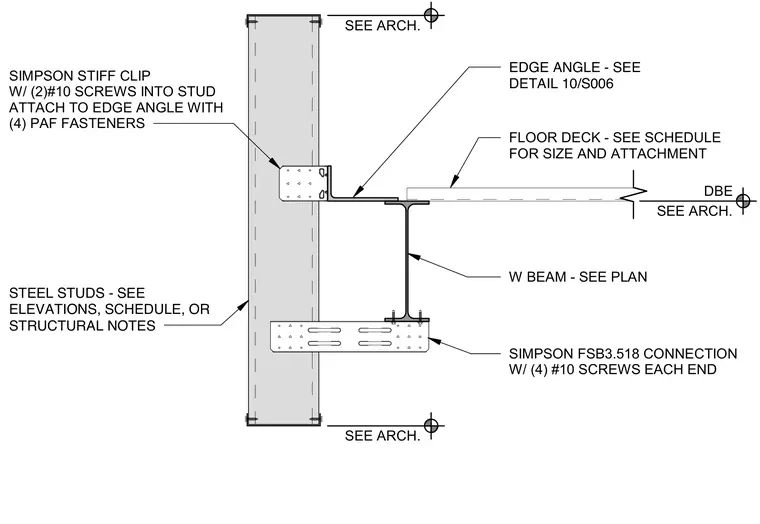

A wide-flange beam frames into cold-formed steel studs using a Simpson FSB3.518 connection secured with four number ten screws at each end. An edge angle is attached to the steel studs with a Simpson stiff clip using two number ten screws into the stud and four powder-actuated fasteners into the edge angle. The floor deck bears on the wide-flange beam and edge angle per structural schedules and architectural specifications.
FLOOR DECK - SEE SCHEDULE FOR SIZE AND ATTACHMENT SEE ARCH. SEE ARCH. DBE SEE ARCH. EDGE ANGLE - SEE DETAIL 10/S006 W BEAM - SEE PLAN SIMPSON FSB3.518 CONNECTION W/ (4) #10 SCREWS EACH END STEEL STUDS - SEE ELEVATIONS, SCHEDULE, OR STRUCTURAL NOTES SIMPSON STIFF CLIP W/ (2)#10 SCREWS INTO STUD ATTACH TO EDGE ANGLE WITH (4) PAF FASTENERS
