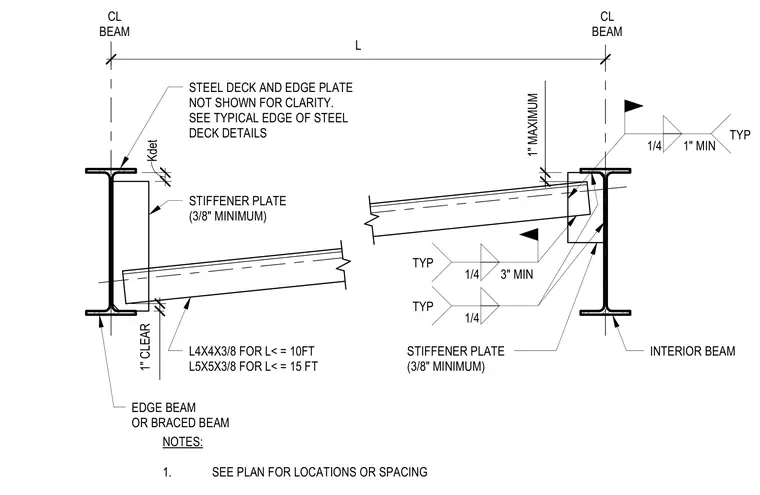

An angle kicker member spans between an edge beam and an interior beam to provide lateral bracing. The kicker member consists of an L4x4x3/8 angle for lengths up to ten feet, or an L5x5x3/8 angle for lengths up to fifteen feet. Three-eighths-inch minimum stiffener plates are welded to the supporting beams with quarter-inch fillet welds. Clearances and minimum weld dimensions are specified at each connection point, with locations and spacing sized per plan.
STIFFENER PLATE (3/8" MINIMUM) EDGE BEAM OR BRACED BEAM L4X4X3/8 FOR L< = 10FT L5X5X3/8 FOR L< = 15 FT INTERIOR BEAM STIFFENER PLATE (3/8" MINIMUM) CL BEAM CL BEAM STEEL DECK AND EDGE PLATE NOT SHOWN FOR CLARITY. SEE TYPICAL EDGE OF STEEL DECK DETAILS NOTES: 1. SEE PLAN FOR LOCATIONS OR SPACING 1" CLEAR 1" MAXIMUM L 1/4 TYP 1/4 3" MIN TYP 1/4 1" MIN TYP Kdet
