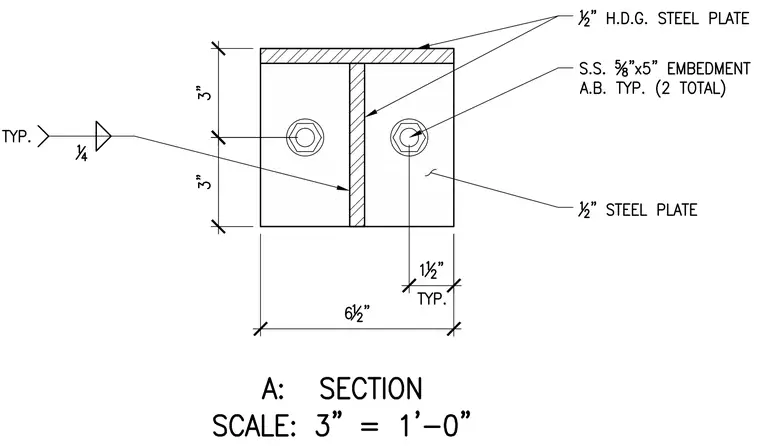

A steel plate connection is anchored with two stainless steel five-eighths inch by five-inch embedment anchor bolts set typically into the assembly. The connection incorporates a half-inch hot-dip galvanized steel plate across the top and half-inch steel plates secured with a quarter-inch typical fillet weld along the vertical joint. Dimensions indicate a six-and-a-half-inch overall width with three-inch vertical spacing increments and one-and-a-half-inch edge distances for the anchor bolts.
