Structural · S-9ETYT

Beam to Rigid Frame Column

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

Moment Connection Shear Tab / Single Plate Beam-to-Beam Bolted Connection Expansion / Slip Connection

About this detail

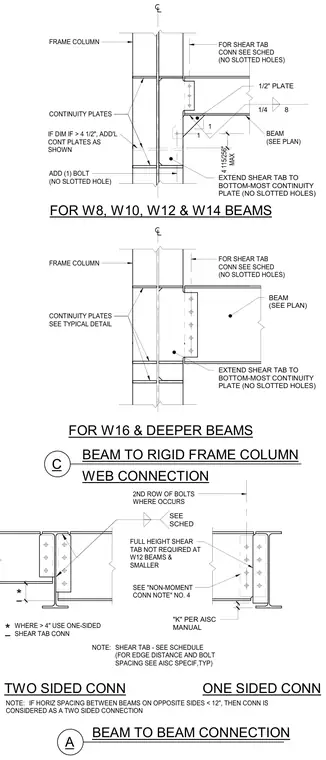

Steel framing connections include beam-to-rigid frame column web connections and beam-to-beam connections for various member sizes. For smaller W8, W10, W12, and W14 beams, shear tabs extend to the bottom-most continuity plate with specific bolt additions and a one-half-inch plate. W16 and deeper beams require extended shear tabs, designated continuity plates, and a second row of bolts where applicable. Beam-to-beam connections account for one-sided and two-sided configurations based on a horizontal spacing of less than twelve inches. All shear tabs, edge distances, and bolt spacings are sized per schedule and AISC specifications, with specific notes regarding fillet welds and clearance.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
