Steel Beam Bearing Connection at Steel Column

Materials

Steel

Elements

Columns Beams Roofs Floors / Slabs Connections / Plates

Connections

Base Plate / Anchorage Bolted Connection

About this detail

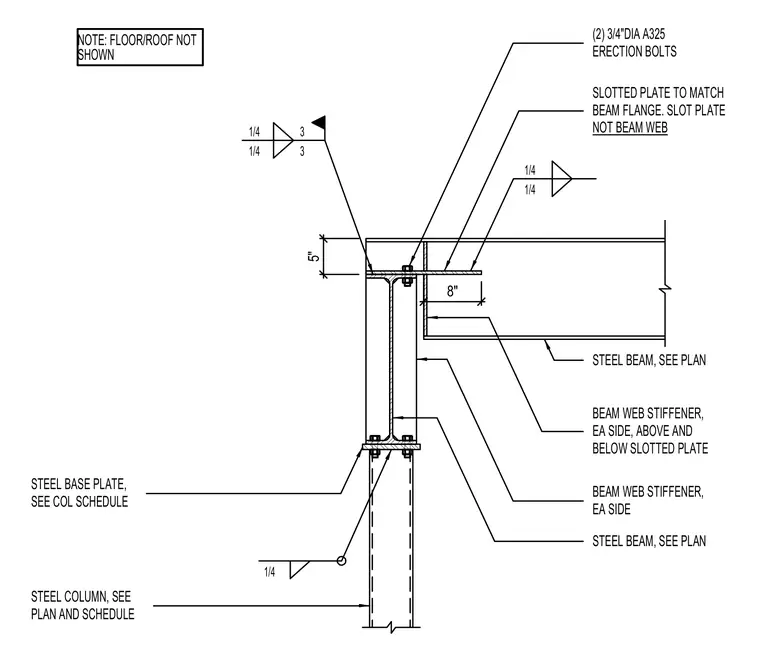

A steel beam bears onto a steel column with a slotted plate matching the beam flange. Two three-quarter-inch diameter A325 erection bolts secure the connection, while the slotted plate is detailed to slot the plate rather than the beam web. Beam web stiffeners are placed on each side, both above and below the slotted plate and at column supports, welded with quarter-inch fillet welds. A steel base plate connects the columns per the schedule, with floor or roof slabs omitted from the view.
