Masonry wall corners and intersections are reinforced with vertical and horizontal bars detailed per the CMU non-load bearing wall reinforcement schedule. L-shaped corner walls feature continuous reinforcing around the corner with standard lap lengths, supplemented by one additional number five vertical bar. Intersecting walls incorporate number four bars at eight inches on center alongside paired number five vertical bars with half-inch clearances. Short intersecting walls and isolated short walls maintain minimum two-foot-eight-inch and maximum four-foot dimensions with standard cell grouting.

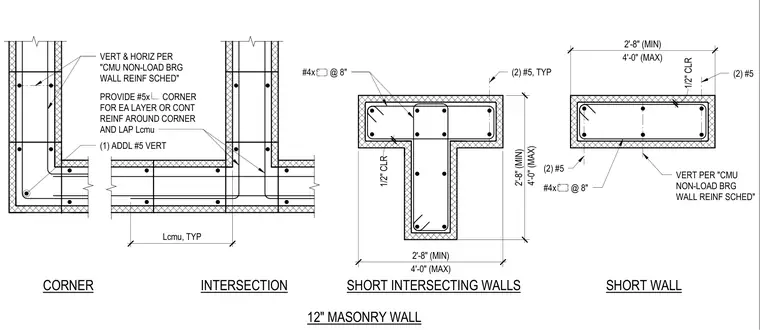

CORNER INTERSECTION SHORT INTERSECTING WALLS SHORT WALL VERT & HORIZ PER "CMU NON-LOAD BRG WALL REINF SCHED" 2'-8" (MIN) 2'-8" (MIN) 2'-8" (MIN) 12" MASONRY WALL 22 5/8" Lcmu, TYP (1) ADDL #5 VERT (2) #5, TYP #4x @ 8" (2) #5 (2) #5 VERT PER "CMU NON-LOAD BRG WALL REINF SCHED" #4x @ 8" 4'-0" (MAX) 1/2" CLR 4'-0" (MAX) 4'-0" (MAX) 1/2" CLR PROVIDE #5x CORNER FOR EA LAYER OR CONT REINF AROUND CORNER AND LAP Lcmu
