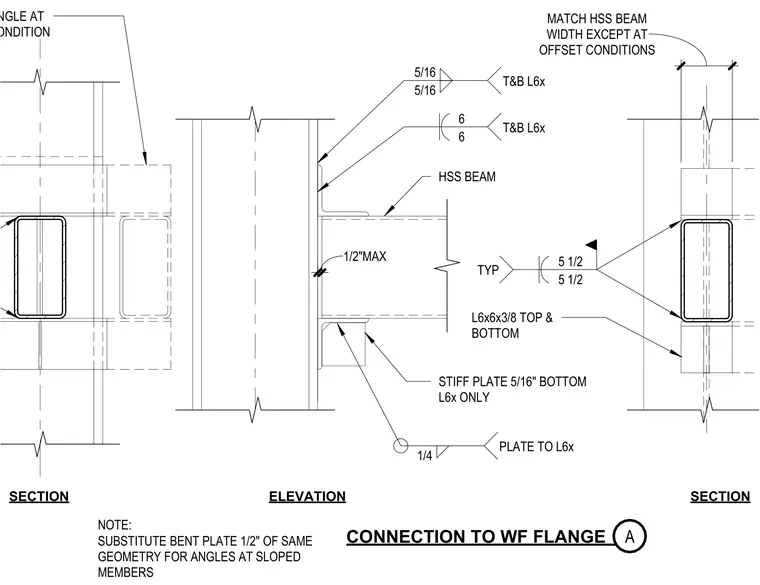

An HSS beam connects to a wide-flange column using L6x6x3/8 top and bottom structural angles. A five-sixteenth-inch fillet weld secures the angles to the wide-flange column flange, and a one-quarter-inch fillet weld secures the plate to the angle. A five-sixteenth-inch stiffener plate is provided at the bottom angle only. A one-half-inch maximum offset condition is accommodated, with bent plates substituted for angles at sloped members.
ELEVATION SECTION HSS BEAM STIFF PLATE 5/16" BOTTOM L6x ONLY NOTE: SUBSTITUTE BENT PLATE 1/2" OF SAME GEOMETRY FOR ANGLES AT SLOPED MEMBERS L6x6x3/8 TOP & BOTTOM CONNECTION TO WF FLANGE SECTION EXTEND ANGLE AT OFFSET CONDITION 1/2"MAX OFFSET CONDITIONS MATCH HSS BEAM WIDTH EXCEPT AT 5 1/2 5 1/2 TYP 5/16 5/16 T&B L6x 6 6 T&B L6x 1/4 PLATE TO L6x A
