Structural · S-9E968

Double Wall Bumpout and Brick Support Detail

Materials

Concrete Steel Timber / Wood Brick Metal (misc.)

Elements

Beams Walls Windows Curtain Walls Facades / Cladding Decks Arches Bracing Insulation Connections / Plates

Connections

Bracing Connection

About this detail

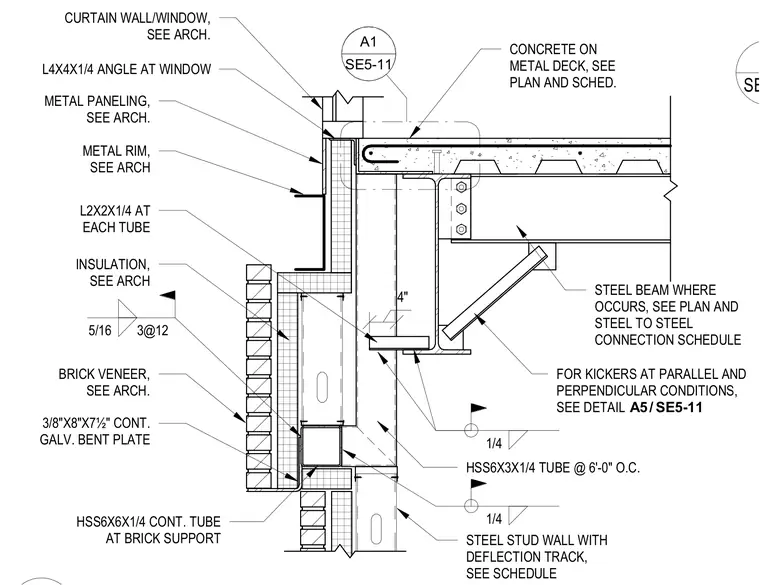

This connection assembly details a double wall bumpout featuring an HSS6x6x1/4 continuous hollow structural section tube for brick support tied back to the primary structure with HSS6x3x1/4 kickers at six-foot centers. A continuous three-eighths by eight by seven-and-a-half-inch galvanized bent plate supports the brick veneer, secured with five-sixteenths fillet welds at twelve-inch spacing. The floor assembly consists of concrete on metal deck supported by a structural steel beam, with an L4x4x1/4 angle supporting the window transition and a steel stud wall with deflection track below. Additional framing includes L2x2x1/4 angles at each tube and quarter-inch fillet welds on structural connections.
