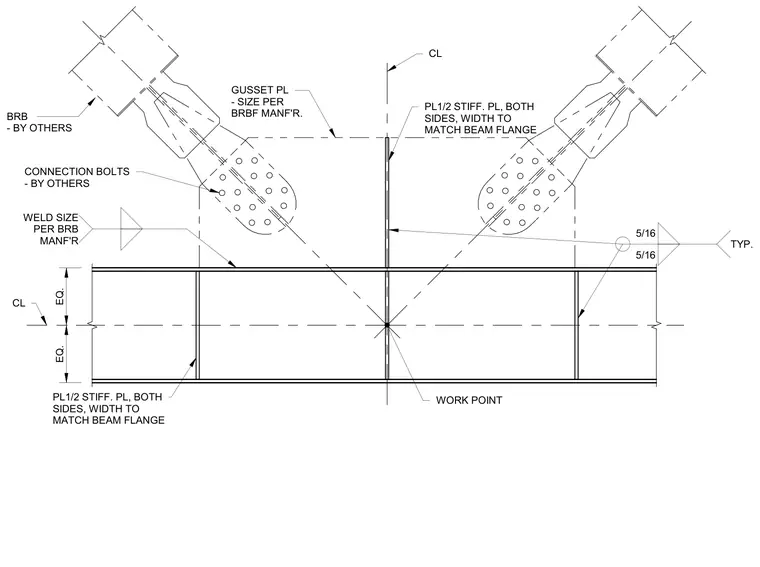

This buckling-restrained braced frame connection details a double diagonal brace framing into a structural steel beam. The gusset plate sizing and connection bolts are provided by the buckling-restrained brace manufacturer. One-half-inch stiffener plates are welded to both sides of the beam web, with widths matching the beam flange. Fillet welds of five-sixteenths inch are specified typically throughout the assembly.
WORK POINT CONNECTION BOLTS - BY OTHERS BRB - BY OTHERS GUSSET PL - SIZE PER BRBF MANF'R. CL CL PL1/2 STIFF. PL, BOTH SIDES, WIDTH TO MATCH BEAM FLANGE PL1/2 STIFF. PL, BOTH SIDES, WIDTH TO MATCH BEAM FLANGE WELD SIZE PER BRB MANF'R 5/16 5/16 TYP. EQ. EQ.
