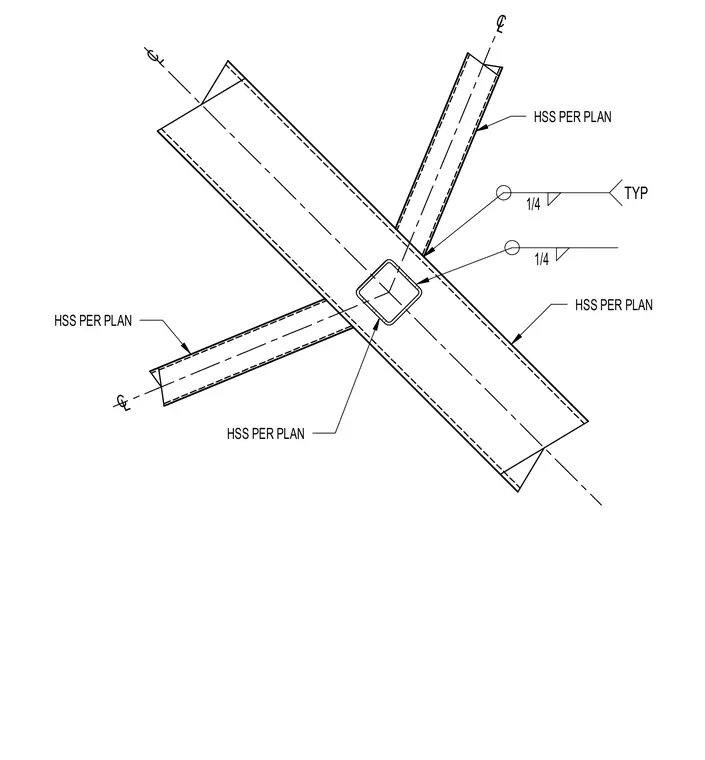

Hollow structural section members frame into an HSS chord member sized per plan. The intersecting members are secured with one-quarter-inch typical fillet welds along the joint per the drawing callouts.
