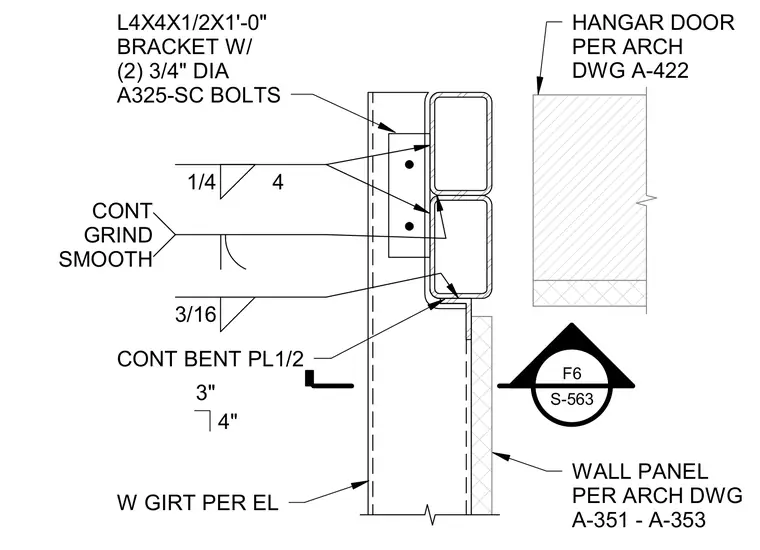

A wide flange girt receives a continuous one-half inch thick bent plate welded with a three-sixteenths inch fillet weld. An L4x4x1/2 by one foot zero inch angle bracket connects to the girt using two three-quarters inch diameter ASTM A325-SC slip-critical bolts, with quarter-inch fillet welds ground smooth continuously. Wall panels and hangar doors interface at the assembly per architectural drawings.
F6 S-563 W GIRT PER EL HANGAR DOOR PER ARCH DWG A-422 CONT GRIND SMOOTH CONT BENT PL1/2 3/16 L4X4X1/2X1'-0" BRACKET W/ (2) 3/4" DIA A325-SC BOLTS 3" 4" 1/4 4 WALL PANEL PER ARCH DWG A-351 - A-353
