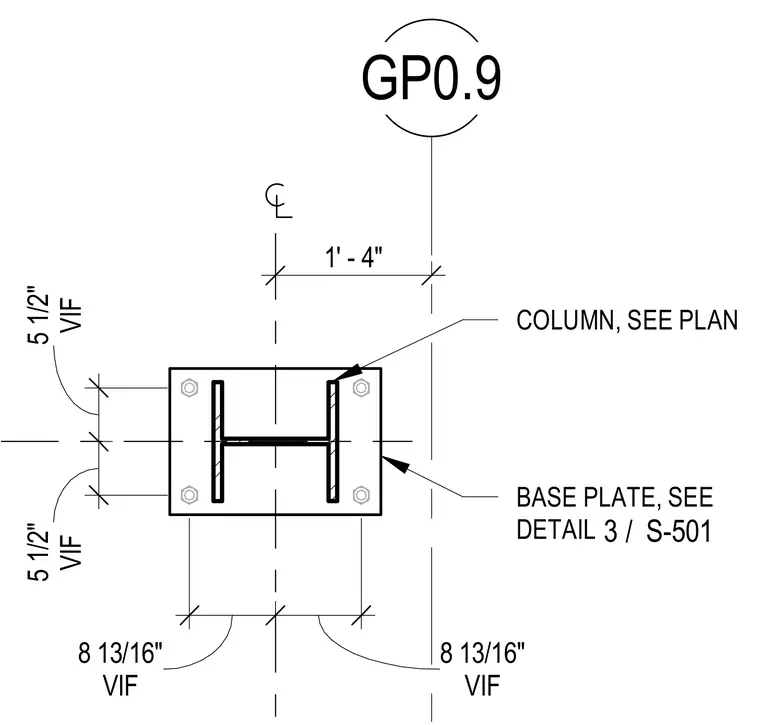

A structural steel column base plate is anchored with four corner bolts located by verified-in-field dimensions. The column flange aligns with the base plate as sized per plan. Bolt spacing is dimensioned symmetrically from centerlines.
GP0.9 1' - 4" VIF 5 1/2" VIF 5 1/2" VIF 8 13/16" VIF 8 13/16" COLUMN, SEE PLAN BASE PLATE, SEE DETAIL / 3 S-501
