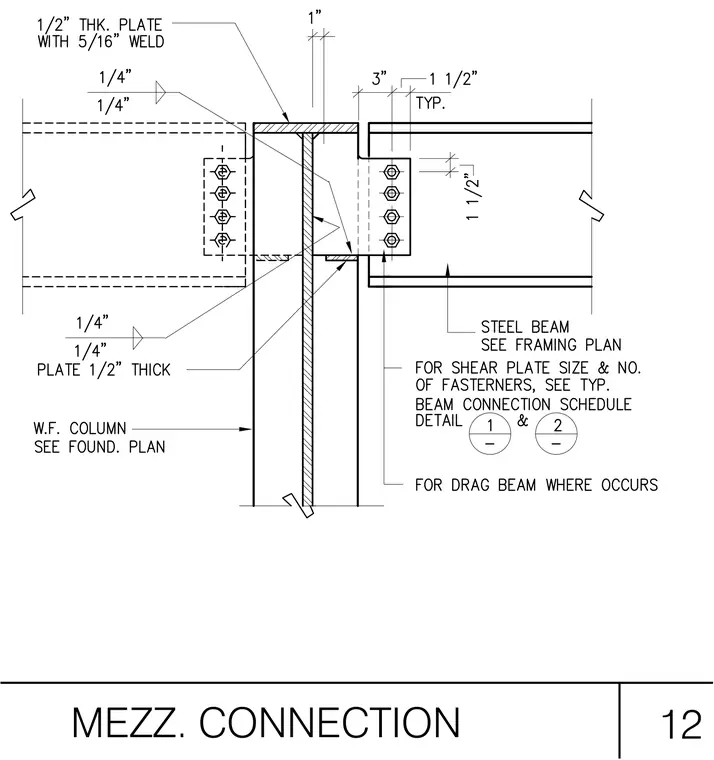

A steel beam connects to a wide flange column using a half-inch thick top plate welded with five-sixteenth-inch fillet welds and a half-inch thick shear plate. The right-hand steel beam features a four-bolt shear connection with one-and-a-half-inch spacing and a three-inch setback from the column face. The left-hand framing connects via a similar four-bolt arrangement and one-quarter-inch fillet welds. A one-inch clearance separates the beam ends over the column centerline. For shear plate size, fastener counts, and drag beam conditions, reference the framing plan and typical beam connection schedules.
12 MEZZ. CONNECTION
