An HSS column passes through a reinforced concrete slab band sized per plan, anchored by a 200x200x19 plate welded with four 12-millimeter bolts or anchor bolts and stiffener plates. The slab band is reinforced with fourteen 20-millimeter longitudinal bars, 10-millimeter stirrups, and 15-millimeter to 20-millimeter transverse reinforcing. Additional framing embeds include 10x480 flat bars at 300 millimeters on center and 75 millimeters on center, plus groups of five 10x580 flat bars at 50 millimeters on center centered on the column. Eight 15-millimeter longitudinal reinforcing bars run horizontally with a 300-millimeter embedment depth.

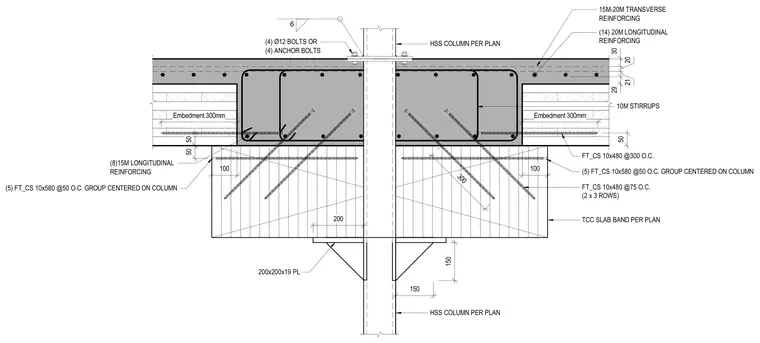

100 100 FT_CS 10x480 @300 O.C. FT_CS 10x480 @75 O.C. (2 x 3 ROWS) 10M STIRRUPS (14) 20M LONGITUDINAL REINFORCING TCC SLAB BAND PER PLAN (8)15M LONGITUDINAL REINFORCING 15M-20M TRANSVERSE REINFORCING 29 21 20 30 HSS COLUMN PER PLAN HSS COLUMN PER PLAN (4) Ø12 BOLTS OR (4) ANCHOR BOLTS 6 300 50 50 (5) FT_CS 10x580 @50 O.C. GROUP CENTERED ON COLUMN (5) FT_CS 10x580 @50 O.C. GROUP CENTERED ON COLUMN 200x200x19 PL Embedment 300mm Embedment 300mm 50 200 150 150
