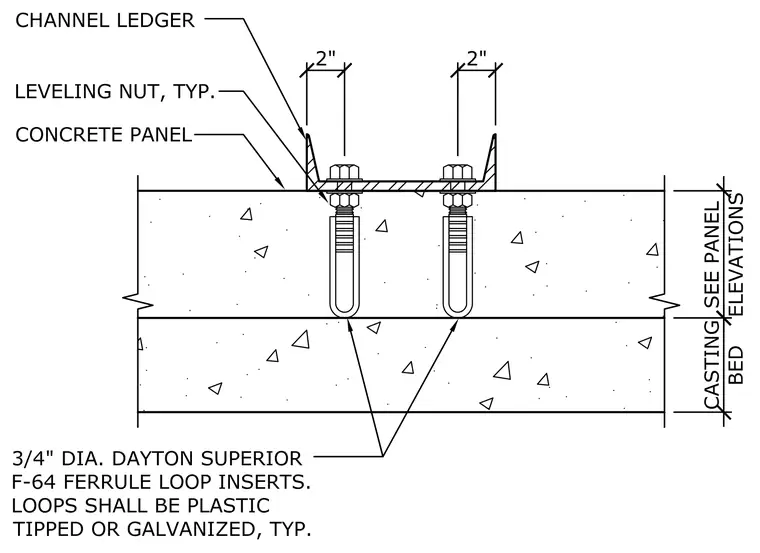

A structural channel ledger bears on a concrete panel and is anchored by two threaded bolts with typical leveling nuts. The bolts thread into three-quarter-inch diameter Dayton Superior F-64 ferrule loop inserts embedded in the concrete panel. The loop inserts feature plastic-tipped or galvanized ends, spaced with two-inch clearances to the channel flanges. The underlying casting bed is sized per panel elevations.
