Cold-formed steel jamb studs attach to a concrete foundation wall with bottom track and angle clips. An L5x3x54 mil angle secures the jamb with four number 8 screws to the jamb and two powder-actuated fasteners embedded one and one-half inches minimum into the concrete. Alternate connections utilize an L3x angle on each side of the jamb stud anchored with a five-eighths-inch diameter adhesive anchor embedded seven inches. Load-bearing shims or grout fill gaps greater than one-quarter inch beneath the bottom track.

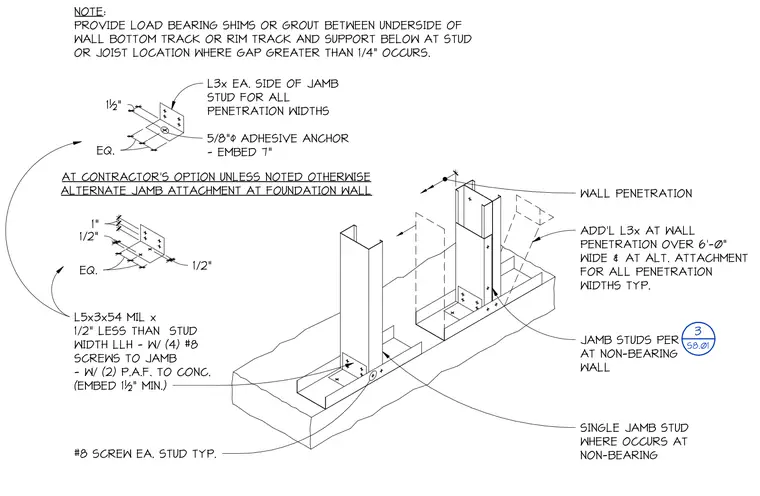

JAMB STUDS PER AT NON-BEARING WALL WALL PENETRATION ADD'L L3x AT WALL PENETRATION OVER 6'-0" WIDE & AT ALT. ATTACHMENT FOR ALL PENETRATION WIDTHS TYP. NOTE: PROVIDE LOAD BEARING SHIMS OR GROUT BETWEEN UNDERSIDE OF WALL BOTTOM TRACK OR RIM TRACK AND SUPPORT BELOW AT STUD OR JOIST LOCATION WHERE GAP GREATER THAN 1/4" OCCURS. 1½" EQ. AT CONTRACTOR'S OPTION UNLESS NOTED OTHERWISE ALTERNATE JAMB ATTACHMENT AT FOUNDATION WALL L3x EA. SIDE OF JAMB STUD FOR ALL PENETRATION WIDTHS 5/8"; ADHESIVE ANCHOR - EMBED 7" 1" 1/2" EQ. L5x3x54 MIL x 1/2" LESS THAN STUD WIDTH LLH - W/ (4) #8 SCREWS TO JAMB - W/ (2) P.A.F. TO CONC. (EMBED 1½" MIN.) #8 SCREW EA. STUD TYP. SINGLE JAMB STUD WHERE OCCURS AT NON-BEARING 1/2" 3 S8.01
