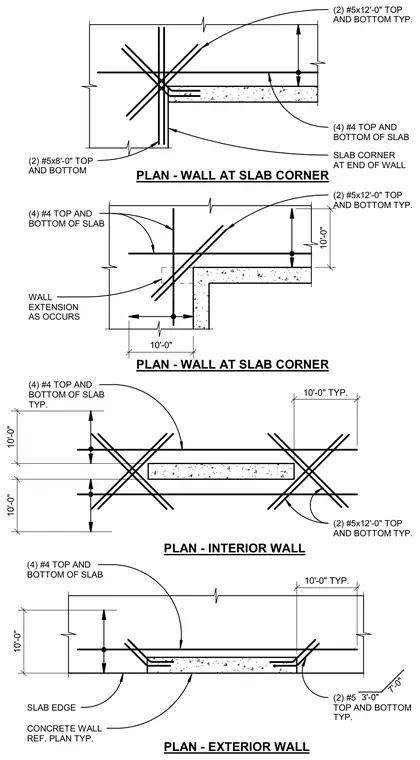

Concrete wall and slab intersections feature continuous and hook-anchored reinforcing bars placed at corners, ends, and edge conditions. The slab edge and interior wall layouts integrate four number four bars at the top and bottom of the slab alongside two number five bars measuring twelve feet long typically. Slab corners at wall terminations incorporate two number five bars measuring eight feet long at the top and bottom. Wall extensions continue as required by the geometry with ten-foot typical dimensions.
(2) #5 TOP AND BOTTOM TYP. CONCRETE WALL REF. PLAN TYP. (2) #5x12'-0" TOP AND BOTTOM TYP. 7'-0" 3'-0" 10'-0" TYP. 10'-0" TYP. 10'-0" PLAN - EXTERIOR WALL SLAB EDGE (4) #4 TOP AND BOTTOM OF SLAB PLAN - INTERIOR WALL 10'-0" 10'-0" (4) #4 TOP AND BOTTOM OF SLAB TYP. PLAN - WALL AT SLAB CORNER PLAN - WALL AT SLAB CORNER (2) #5x12'-0" TOP AND BOTTOM TYP. (4) #4 TOP AND BOTTOM OF SLAB (2) #5x8'-0" TOP AND BOTTOM SLAB CORNER AT END OF WALL (2) #5x12'-0" TOP AND BOTTOM TYP. 10'-0" 10'-0" (4) #4 TOP AND BOTTOM OF SLAB WALL EXTENSION AS OCCURS
